Termatrac Calibration

The Termatrac devices needs yearly calibration to maintain consistent accuracy and verify the functionality of its electronic components, aligning with test and measurement standards. Calibrating all test and measurement equipment is important. (needs to be in bold) Termatrac devices are crucial tools for detecting movement, moisture, and temperature differences, aiding PCOs and Building Inspectors with digital graphs and percentiles. However, without regular calibration, the reliability of reported measurements can't be ensured. To maintain accuracy, Termatrac recommends annual calibration of their devices, as environmental factors like humidity and temperature fluctuations can affect results. Additionally, frequent use can wear down external components, impacting data accuracy. Termatrac Calibration Centres conduct thorough inspections and repairs to uphold factory standards and keep devices functioning optimally.

Termatrac Calibration Process

The calibration of each Termatrac device is tailored to its specific condition. Typically, this process involves replacing any worn or damaged internal and external components that impact functionality, along with the firmware and hardware updates are also applied to ensure all mechanical parts meet specifications. Additionally, Termatrac offers a 12 month warranty upon calibration to uphold our commitment to maintaining measurement accuracy standards.

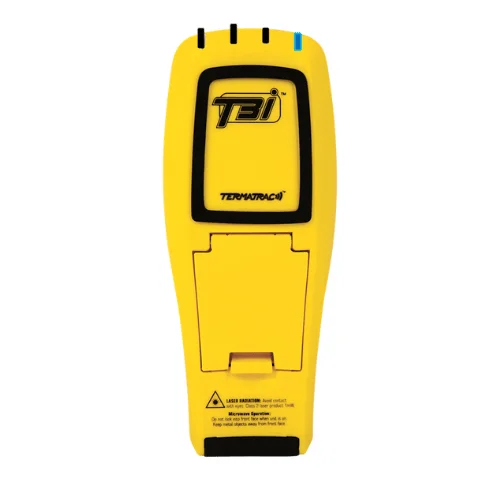

T3i Calibration Process

(Does not include freight)

  1. Perform a complete initial functional check.
  2. Inspect battery compartment, connections, and external hardware for damage; replace as
    required.
  3.  Verify all internal and external connectors are checked.
  4. Upgrade firmware to the latest version.
  5. Radar- inspect and calibrate power output and sensitivity. Replace components which are
    faulty and do not meet specifications.
  6.  Moisture- Inspect and calibrate. Replace components that are faulty and do not meet
    specification.
  7. Temperature- inspect and calibrate accuracy and sensitivity. Replace components that are
    faulty and do not meet specification.
  8. Laser Pointer- inspect and replace components which are faulty and do not meet specification.
  9. Perform final Quality and Assurance check.
  10. Provide Pass Calibration Certificate, QA label and apply next due date.
  11. Update T3i with record of 12 month extended warranty from calibrated date.
  12. Calibration Certificate provided.

Please Note: The T3i technology has become outdated, and sourcing electronic parts for the device has become significantly challenging. Consequently, we’ve introduced a new device to replace the T3i. Termatrac is committed to staying abreast of advancing technology.

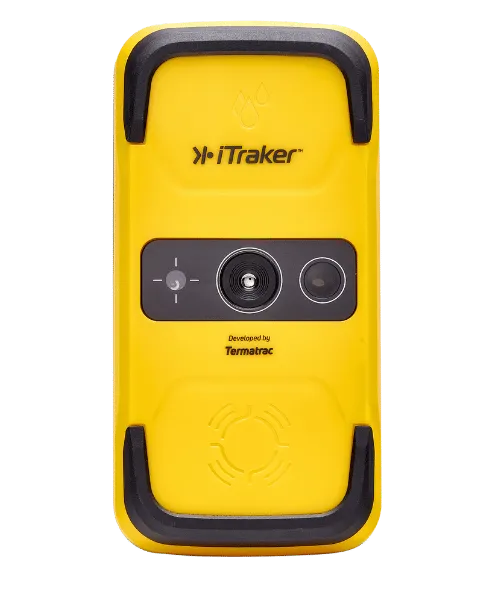

iTraker Calibration Process

(Does not include freight)

  1. Perform a complete functional check.
  2. Inspect enclosure & external parts for damage & wear, and replace as required.
  3. Inspect internal connections & electronics, repair or replace as required.
  4. Inspect and test the battery.
  5. Upgrade firmware to the latest version.
  6. Radar- inspect and calibrate power output and sensitivity. Replace faulty or out of spec
    components as required.
  7. Moisture- inspect and calibrate accuracy and sensitivity. Replace faulty or out of spec
    components as required.
  8. Temperature – inspect and calibrate accuracy and sensitivity. Replace faulty or out of spec
    components as required.
  9. Laser Pointer- inspect and replace faulty components as required.
  10. Replace Scuff Pads
  11. Perform final Quality and Assurance check.
  12. Provide a Pass Calibration Certificate, QA label, and apply the next due date.
  13. Update iTraker with a record of 12 months extended warranty from the calibrated date.
  14. Calibration Certificate provided.

For information about calibration please contact our Support Team.
