iTRAKER PRO : THE ULTIMATE COMPANION TOOL

iTRAKER PRO : THE ULTIMATE COMPANION TOOL

iTraker Pro is a non-invasive detection device designed to accurately track the movement of insects and other pests. Known as “The Ultimate Companion Tool,” it offers precise and thorough inspections for developing treatment strategies, making it an essential resource for Pest Control and Building Inspectors.

iTraker Pro is a non-invasive detection device designed to accurately track the movement of insects and other pests. Known as “The Ultimate Companion Tool,” it offers precise and thorough inspections for developing treatment strategies, making it an essential resource for Pest Control and Building Inspectors.

SENSORS

SENSORS

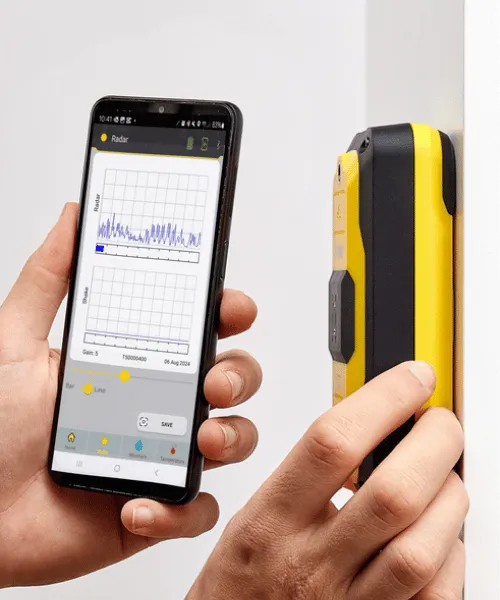

RADAR SENSOR

The Radar Sensor is a highly sensitive device designed to track termites and other pests behind most common building materials, eliminating the need to cut holes initially. It penetrates through these materials to confirm, detect, and locate termite and other pest activity. The sensor emits high-frequency, low-power microwave signals, which are displayed on the iTraker App screen. Using non-intrusive, low-energy microwaves, it accurately locates and monitors termite and insect movements without causing any disturbance.ts without disturbance.

1 2
This is an image of the Moisture Sensor

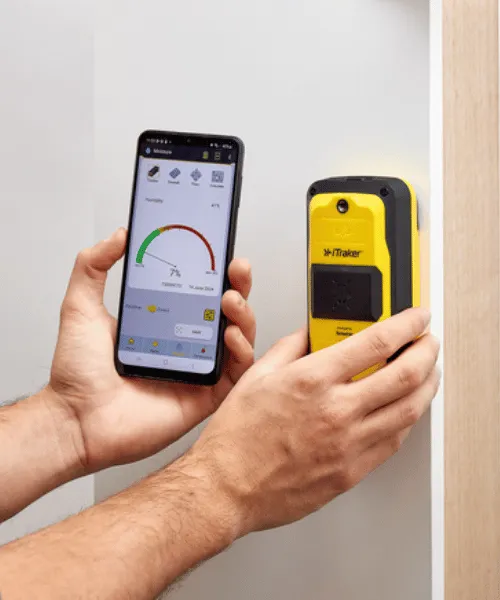

MOISTURE SENSOR

The iTraker Pro features an advanced Direct Moisture Sensor designed to identify potential risk areas by detecting moisture changes across surfaces. This sensor includes a relative Moisture Sensor and a humidity sensor for easily detecting elevated moisture levels and leaks behind walls. The Direct Moisture Sensor detects slight increases or decreases in moisture content, displaying readings as percentages. Utilizing omni-directional technology, it creates an electric field to measure conductance levels in materials, penetrating up to 40 mm (1.5 inches) and designed to slide across flat surfaces, making it ideal for damp areas like kitchen and bathroom tiles. The Relative Moisture Sensor effectively identifies high-moisture areas and accurately tracks potential water leaks, displaying the relative difference between two moisture points on a bar graph. In Direct Mode, the sensor detects subtle moisture fluctuations up to 40 mm deep, maintaining accuracy even in extreme humidity. In Relative Mode, it detects moisture changes beneath the wall’s surface relative to a reference point, useful for identifying moisture-prone areas conducive to termite activity.



1 2

RADAR SENSOR

The Radar Sensor is a highly sensitive device designed to track termites and other pests behind most common building materials, eliminating the need to cut holes initially. It penetrates through these materials to confirm, detect, and locate termite and other pest activity. The sensor emits high-frequency, low-power microwave signals, which are displayed on the iTraker App screen. Using non-intrusive, low-energy microwaves, it accurately locates and monitors termite and insect movements without causing any disturbance.ts without disturbance.

This is an image of the Moisture Sensor

MOISTURE SENSOR

The iTraker Pro features an advanced Direct Moisture Sensor designed to identify potential risk areas by detecting moisture changes across surfaces. This sensor includes a relative Moisture Sensor and a humidity sensor for easily detecting elevated moisture levels and leaks behind walls. The Direct Moisture Sensor detects slight increases or decreases in moisture content, displaying readings as percentages. Utilizing omni-directional technology, it creates an electric field to measure conductance levels in materials, penetrating up to 40 mm (1.5 inches) and designed to slide across flat surfaces, making it ideal for damp areas like kitchen and bathroom tiles. The Relative Moisture Sensor effectively identifies high-moisture areas and accurately tracks potential water leaks, displaying the relative difference between two moisture points on a bar graph. In Direct Mode, the sensor detects subtle moisture fluctuations up to 40 mm deep, maintaining accuracy even in extreme humidity. In Relative Mode, it detects moisture changes beneath the wall’s surface relative to a reference point, useful for identifying moisture-prone areas conducive to termite activity.



RADAR SENSOR

The Radar Sensor is a highly sensitive device designed to track termites and other pests behind most common building materials, eliminating the need to cut holes initially. It penetrates through these materials to confirm, detect, and locate termite and other pest activity. The sensor emits high-frequency, low-power microwave signals, which are displayed on the iTraker App screen. Using non-intrusive, low-energy microwaves, it accurately locates and monitors termite and insect movements without causing any disturbance.ts without disturbance.

1 2
This is an image of the Moisture Sensor

MOISTURE SENSOR

The iTraker Pro features an advanced Direct Moisture Sensor designed to identify potential risk areas by detecting moisture changes across surfaces. This sensor includes a relative Moisture Sensor and a humidity sensor for easily detecting elevated moisture levels and leaks behind walls. The Direct Moisture Sensor detects slight increases or decreases in moisture content, displaying readings as percentages. Utilizing omni-directional technology, it creates an electric field to measure conductance levels in materials, penetrating up to 40 mm (1.5 inches) and designed to slide across flat surfaces, making it ideal for damp areas like kitchen and bathroom tiles. The Relative Moisture Sensor effectively identifies high-moisture areas and accurately tracks potential water leaks, displaying the relative difference between two moisture points on a bar graph. In Direct Mode, the sensor detects subtle moisture fluctuations up to 40 mm deep, maintaining accuracy even in extreme humidity. In Relative Mode, it detects moisture changes beneath the wall’s surface relative to a reference point, useful for identifying moisture-prone areas conducive to termite activity.

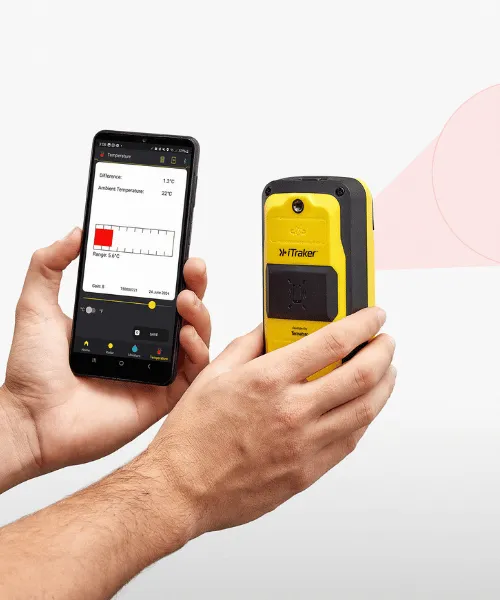

TEMPERATURE SENSOR



The temperature sensor precisely and effortlessly detects surface anomalies, indicating potential pest activity or construction issues, and allows switching between Celsius and Fahrenheit. The Temperature Laser Pointer is user-friendly and easy to interpret. Simply point the laser at the target surface, and the sensor will numerically display changes in surface temperature from your chosen reference point. Just select your reference point, aim, and scan.

This is an image of the Temperature Sensor
This is an image of the Thermal Imaging Camera

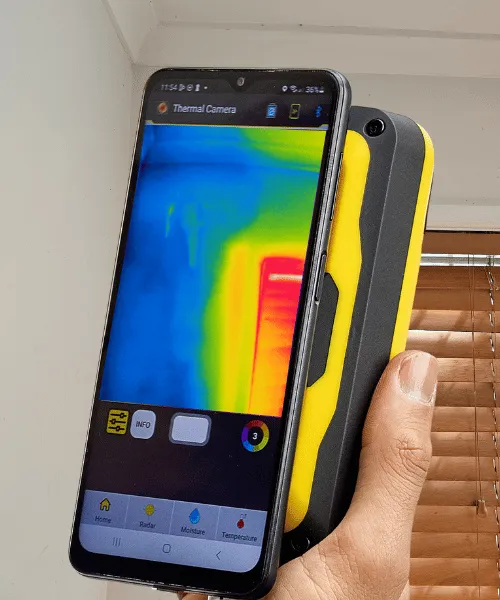

THERMAL IMAGING CAMERA

The Thermal Imaging Camera enhances the efficiency and effectiveness of your inspections, taking it to the next level. While everything may appear normal to the naked eye, a thermal scan can detect heat signatures which could be conducive of termite infestations or reveal the extent of termite activity within a building’s structure. Additionally, the camera helps to identify hidden issues, such as water leaks behind walls, by capturing surface temperature differentials. This can reveal water penetration, heat transfer, condensation, and potential sources of mould.

This is an image of the Temperature Sensor

TEMPERATURE SENSOR



The temperature sensor precisely and effortlessly detects surface anomalies, indicating potential pest activity or construction issues, and allows switching between Celsius and Fahrenheit. The Temperature Laser Pointer is user-friendly and easy to interpret. Simply point the laser at the target surface, and the sensor will numerically display changes in surface temperature from your chosen reference point. Just select your reference point, aim, and scan.

This is an image of the Thermal Imaging Camera

THERMAL IMAGING CAMERA

The Thermal Imaging Camera enhances the efficiency and effectiveness of your inspections, taking it to the next level. While everything may appear normal to the naked eye, a thermal scan can detect heat signatures which could be conducive of termite infestations or reveal the extent of termite activity within a building’s structure. Additionally, the camera helps to identify hidden issues, such as water leaks behind walls, by capturing surface temperature differentials. This can reveal water penetration, heat transfer, condensation, and potential sources of mould.

TEMPERATURE SENSOR



The temperature sensor precisely and effortlessly detects surface anomalies, indicating potential pest activity or construction issues, and allows switching between Celsius and Fahrenheit. The Temperature Laser Pointer is user-friendly and easy to interpret. Simply point the laser at the target surface, and the sensor will numerically display changes in surface temperature from your chosen reference point. Just select your reference point, aim, and scan.

This is an image of the Temperature Sensor
This is an image of the Thermal Imaging Camera

THERMAL IMAGING CAMERA

The Thermal Imaging Camera enhances the efficiency and effectiveness of your inspections, taking it to the next level. While everything may appear normal to the naked eye, a thermal scan can detect heat signatures which could be conducive of termite infestations or reveal the extent of termite activity within a building’s structure. Additionally, the camera helps to identify hidden issues, such as water leaks behind walls, by capturing surface temperature differentials. This can reveal water penetration, heat transfer, condensation, and potential sources of mould.

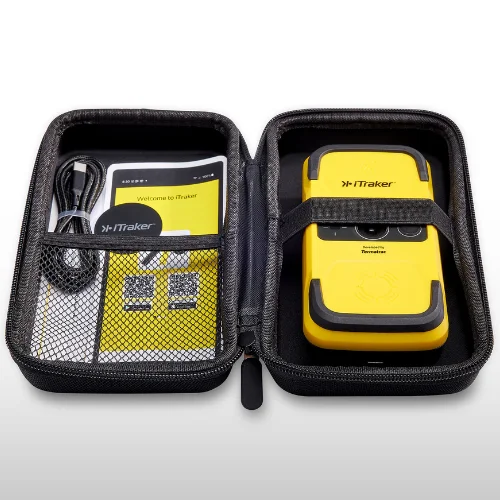

WHAT'S IN THE BOX?

This is an image of the iTraker Pro Suite

iTraker PRO Model Inclusion:

  • iTraker PRO Device

  • iTraker Stand

  • Lanyard

  • Phone Backing Plate

  • USB-C Charging Cable

  • USB Thermal Camera Cable

  • iTraker Guide

  • 24 Month Warranty

FEATURES

SAVING DATA REPORT ONLINE

Saving data is as simple as touching the screen. Record any information you consider valuable for your client to view both on-site and off-site, as well as for your own records. This data can be crucial for verifying findings before treatment or demonstrating the success of post-treatment eradication of activity.

EASY TO USE

Traker has been designed and engineered to meet Industry Standards and the needs in turn, economically provides a more precise and thorough inspection and treatment plan delivered by the Pest Control Operators and Building Inspectors. The iTraker is a multi-sensor detection device allowing pest control operators and building inspectors to detect a wide range of pests and building issues without the need for an invasive inspection.

TRAINING AND CERTIFICATION

Training program to ensure users have the necessary skills and knowledge to become Termatrac Certified Technicians and fully utilise the device’s capabilities.

CHARGING

Charging the device has never been easier. Use the Type-C USB cable eliminates the need for traditional rechargeable batteries, which can cause damage and corrosion to the unit’s main board. This modern charging method is not only more efficient but also prolongs the lifespan of your device by preventing battery-related issues. Simply plug in the Type-C USB cable for a hassle-free and reliable power solution.

MAINTENANCE

CALIBRATION

The Termatrac devices needs yearly calibration to maintain consistent accuracy and verify the functionality of its electronic components, aligning with test and measurement standards. Calibrating all test and measurement equipment is important.
